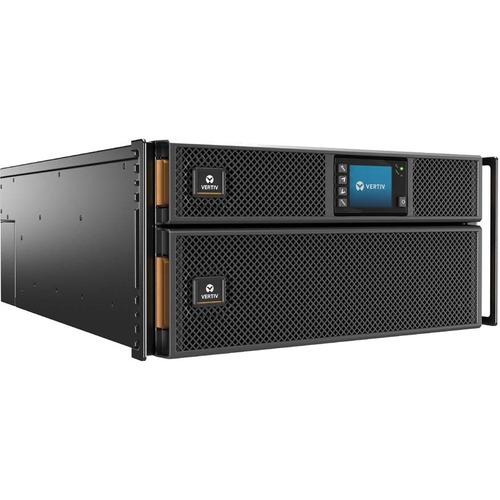

Vertiv Liebert GXT5 UPS - 8kVA/8kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU120 Card| Color/Graphic LCD| 3-Year Warranty
Description
Specifications
UNSPSC Code
39121011
Height
32.4in
Width
24.8in
Length
35.4in
Application/usage
Data Center
Backup/Run Time (Full Load)
6.50 Minute
Backup/Run Time (Half Load)
17 Minute
Backup/Run Time With External Battery Cabinet (Full Load)
17.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)
45 Minute
Battery Characteristics
Valve-regulated, Non-spillable, Flame-retardant
Battery Chemistry
Lead Acid
Brand
Liebert
Brand Name
Liebert
Category
General Purpose UPS
Country Of Origin
China
Depth
25.6"
Energy Star
Yes
Environmental Certification
RoHS
Environmental Sensors
Temperature Sensor
Environmentally Friendly
Yes
Form Factor
Rack/Tower
Height
10.2"
Hot Swappable
Yes
Input Frequency
60 Hz
Input Voltage
208 V AC
Limited Warranty
3 Year
Load Capacity (VA)
8000 VA
Load Capacity (W)
8000 W
Manufacturer
VERTIV
Manufacturer Part Number
GXT5-8000MVRT6UXLN
Manufacturer Website Address
http://www.vertiv.com/
Maximum Operating Elevation
9842.52 ft
Maximum Operating Temperature
104°F (40°C)
Network (RJ-45)
Yes
Number of External Battery Cabinets
1
Output Voltage
120 V AC
Package Contents
- GXT5 8000VA 208/120V UPS
- 4 Post Fixed Rail Kit
- Tower Stand
- USB Cable
- Quick Start Guide
- Safety Instruction Manual
Packaged Quantity
1
Phase
Single Phase
Plug/Connector Type
Terminal Block
Product Family
GXT
Product Name
GXT5 8000VA 208/120V UPS
Product Series
GXT
Product Type
Double Conversion Online UPS
Rack Height
6U
Receptacle Type
Hardwired
Replaceable Battery
Yes
Serial Port
Yes
Status Indicators
LED/Full Color Graphic LCD:
- Alarm / Fault Indication
Storage Temperature
5°F (-15°C) - 104°F (40°C)
TAA Compliant
No
Transfer Time
0 ns
USB
Yes
User Selectable Output
208/120VAC
Utility (AC) Mode Overload
- 105% to 125% for 5 minutes
- 125% to 150% for 60 seconds
- >150% (impact load) minimum 200 ms
Waveform Type
Pure Sine Wave
Width
16.9"
