Transition Networks Stand-alone T1/E1/J1 Network Interface Device - T1/E1/J1, OC-3, 100Base-X - 4921.26 ft - 1 x Expansion Slots - SFP - Power Supply - Standalone, Wall Mountable
Description

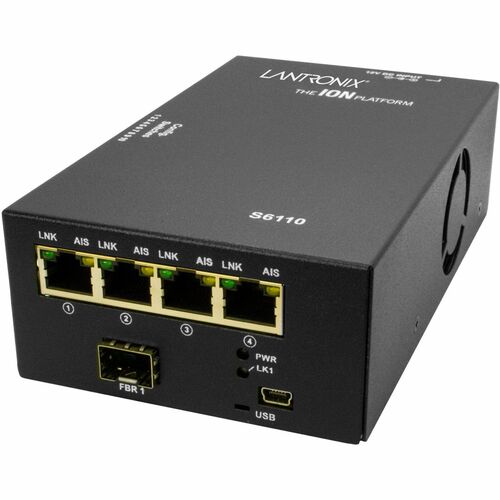

The ION S6110 is a managed stand-alone T1/E1/J1 media converter mux and provides a solution for those users that need to extend multiple T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.
Specifications
43201553
1.85lb
Transition Networks
Transition Networks
Transceivers/Media Converters
United States
6.5"
No
RoHS
Yes
SFP
Wall Mountable
1.8"
Lifetime
No
Transition Networks, Inc
S6110-1040-NA
http://www.transition.com
Twisted Pair
No
100Base-X
1
- Stand-alone T1/E1/J1 Network Interface Device
- Power Supply
Power supply
S6110
Stand-alone T1/E1/J1 Network Interface Device
S6110
Transceiver/Media Converter
4
No
2 lb
3.7"
