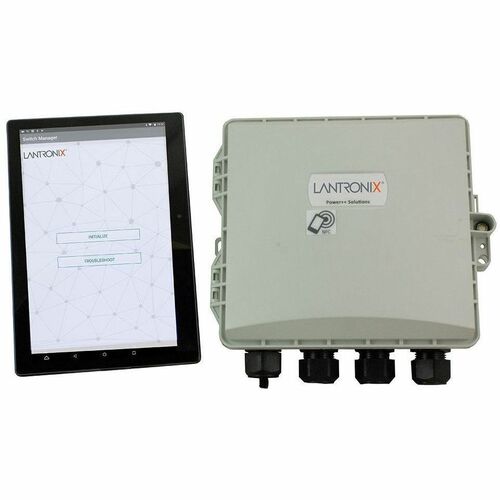

Transition Networks Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Modular - 1 SFP Slots - Twisted Pair, Optical Fiber - Pole Mount, Wall Mountable - 2 Year
Description
Transition Networks' SESPM1040-541-LT-xx Switch is a Layer 2 managed switch with (4) 10/100/1000Base-T IEEE 802.3bt compliant PoE++ ports and (1) combination 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP port (additional optional ports available), that is ideal for use in security and surveillance, PoE lighting, digital signage and many other applications. It is self-enclosed in an outdoor NEMA 4X/IP66 rated enclosure with 6KV surge protection on the AC line. Additional fuse protection on the PoE ports and included data port eliminates the need for external circuit cross protection between the attached PD and the switch. It can be mounted on a wall or side of a building, or optional brackets are available for mounting on a pole.
The switch is available in multiple configurations: as either an AC- or DC-powered power source (PSE) providing ?60 Watts of power per port simultaneously on all four ports or ?90 Watts on individual ports (not to exceed 240 Watts total*), or as a PoE-powered device (PD) providing up to 80 Watts of total PoE power. The PD version requires power from an IEEE 802.3bt Class 8 compliant PSE but can receive that power over Ethernet cable or over copper cable running parallel to a fiber optic cable, and includes a 12V Aux port which can be used to provide auxiliary power to a PC, lighting or other accessories. A second combo 10/10/1000Base-T RJ-45 maintenance or 100/1000Base-X SFP uplink port can be activated by installing an optional Combo Port Module. Alternatively, an IEEE 802.11 b/g/n wireless Ethernet extension port is available as an option to extend the Ethernet network to devices in locations where new Ethernet cable runs are not practical. An optional Digital Input/Output Module with four optical isolators configurable as either input or outputs provide connections for alarms, event notifications or other customer designated items.
All versions are equipped with Near Field Communication (NFC) to allow simple and repeatable configuration of the switch using a user-friendly app on a mobile device prior to connecting or powering up the switch. Bluetooth Low Energy (BLE) allows remote access to alarm information or to read or change equipment settings without requiring physical access using ladders or scissor lifts. The switch also incorporates integrated management software for setup, monitoring and control of connected devices.
Specifications
43222612
4.8lb
Transition Networks
Transition Networks
Switches & Bridges
United States
4.3"
RoHS
Yes
Gigabit Ethernet
SFP (mini-GBIC)
Wall Mountable
8.5"
2
2 Year
Yes
Transition Networks, Inc
http://www.transition.com
Twisted Pair
Yes
10/100/1000Base-T
1
1
4 x Gigabit Ethernet Network
Power supply
SESPM1040-541-LT-xx
Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch
SESPM1040-541-LT-xx
Ethernet Switch
Yes
4
4.80 lb
10.1"
