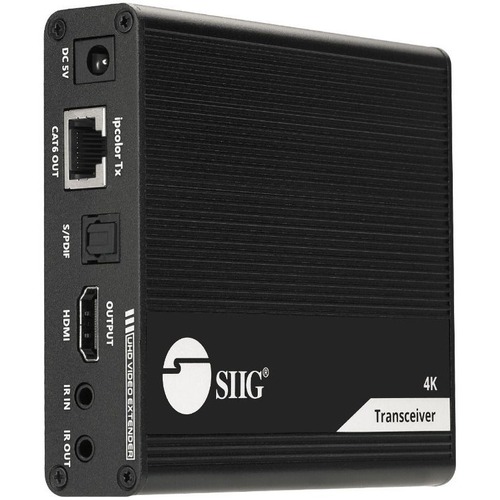

SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transceiver - 230ft - Zero Latency, With IR Control & Auto EDID Management , Daisy Chain Transmission Kit Part# CE-H26M11-S1
Description
Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, and ARC using industry leading ipcolor video transmission technology; receives HDMI signals from ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part number CE-H26M11-S1, sold separately, supports daisy chain connection for additional extension and displays
- 4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable
- Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency
- Daisy Chain Extension - Supports daisy chain connection of up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver
- Note: Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, sold separately
- Audio Extraction - Extracts and routes digital audio from the HDMI signal through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal
- ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included
- Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)
- Protection - Lightning Protection, Surge Protection, ESD protection
- High Quality Construction - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operationEasy Installation - Plug and play installation, no driver installation required
Compatibility Notes:
- Does not work with routers and switches
- Requires ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit, part# CE-H26M11-S1, for daisy chain connection, sold separately
Specifications
UNSPSC Code
43201614
Weight
0.46lb
Brand
Own Brand
Category
Audio & Video Consoles/Extenders
Connectivity Technology
Wired
Country of Origin
China
Environmental Certification
RoHS
Environmentally Friendly
Yes
Graphics Modes
4K UHD
HDMI Out
Yes
Limited Warranty
2 Year
Maximum Operating Distance
230 ft
Maximum Video Resolution
3840 x 2160
Media Type Supported
Twisted Pair
Network (RJ-45)
Yes
Number of HDMI Outputs
1
Number of Network (RJ-45) Ports
2
Number of Output Devices Supported
1
Product Color
Black
Product Type
Video Extender Transceiver
Twisted Pair Cable Standard
Category 7
