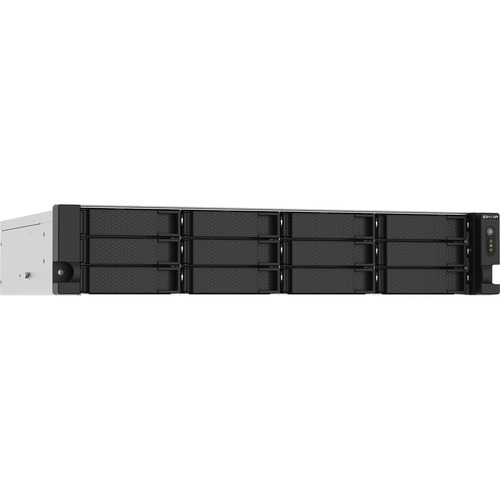

QNAP TS-1273AU-RP-8G SAN/NAS Storage System - AMD Ryzen V1500B Quad-core (4 Core) 2.20 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10,
Description
High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
-
Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
Add extra functionality to the TS-1273AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
-
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Host multiple virtual machines and containers to run a wide range of applications on the TS-1273AU-RP.
-
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Absolute performance with AMD Ryzen™ and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1273AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-1273AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1273AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1273AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1273AU-RP to simplify network deployment.
Specifications
43201802
31.35lb
10.3in
22.9in
23.5in
QNAP
QNAP
Storage Arrays & Servers
Serial ATA/600
Taiwan
2.5 Gigabit Ethernet
PCI Express 3.0 x4
5 GB
Rack-mountable
3.5"
2 Year
QNAP Systems
TS-1273AU-RP-8G-US
http://www.qnap.com
300 W
DDR4 SDRAM
Yes
8
12
2
2
12
8
2
1
QTS 4.4.2
- TS-1273AU-RP-8G SAN/NAS Storage System
- 1 x Ethernet Cable
- 2 x Power Cords
- 48 x Flat Head Screws (for 3.5" HDD)
- 36 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
Quad-core (4 Core)
AMD
V1500B
2.20 GHz
Ryzen
TS-x73AU
TS-1273AU-RP-8G
TS-1273AU-RP-8G SAN/NAS Storage System
TS-x73AU
SAN/NAS Storage System
NFS
2U
0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
Yes
Yes
8 GB
4
19"
