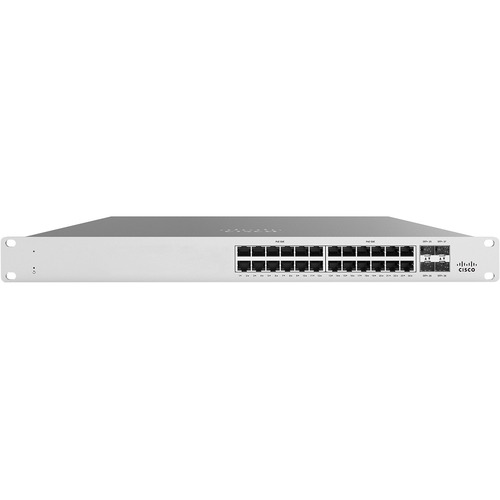

Meraki MS125-24P-HW Ethernet Switch - 24 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X - 2 Layer Supported - Modular - 426.10 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
Description
Cisco Meraki MS125 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application, operating system, client, and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
Specifications
UNSPSC Code
43222612
Weight
11.15lb
Brand
Meraki
Brand Name
Meraki
Category
Switches & Bridges
Compatible Rack Unit
1U
Country of Origin
Taiwan
Depth
9.8"
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP+
Form Factor
Rack-mountable
Height
1.7"
Layer Supported
2
Manageable
Yes
Manufacturer
Cisco Systems, Inc
Manufacturer Part Number
MS125-24P-HW
Manufacturer Website Address
http://www.cisco.com
Media Type Supported
Twisted Pair
Modular
Yes
Network Technology
10/100/1000Base-T
Number of SFP+ Slots
4
Number of Total Expansion Slots
4
Port/Expansion Slot Details
24 x Gigabit Ethernet PoE+
Power Consumption
426.10 W
Power Source
Power supply
Product Family
MS125
Product Model
MS125-24P-HW
Product Name
MS125-24P-HW Ethernet Switch
Product Series
MS125
Product Type
Ethernet Switch
Total Number of Network Ports
24
Uplink Port
Yes
Weight (approximate)
9.26 lb
Width
17.3"
