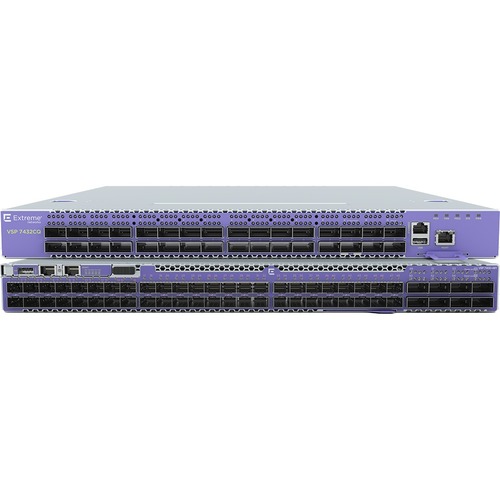

Extreme Networks ExtremeSwitching VSP7400-48Y-8C Ethernet Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - 1U High - Rack-mountable, Rail-mountable
Description
Two models of the VSP 7400 Series are available:
VSP7400 -32C:
Core or spine switch with 32 x 100 Gb QSFP28 ports. QSFP28 ports can also be optionally run at 10 Gb, 25Gb or 40 Gb with channelization for high-density applications.
VSP7400 -48Y-8C:
Aggregation or leaf switch with 48 x 25Gb SFP28 port s and 8 x 100 Gb QSFP28 uplink ports. SFP28 ports on the VSP7400 -48Y can also run at 1Gb, 10 Gb or 25Gb to support a range of connectivity options. The VSP 7400 can handle a variety of high bandwidth applications, including high-density 10 Gb, emerging 25Gb, as well as 40 Gb and 100 Gb core/ aggregation and spine/ leaf fabric deployments. A variety of QSFP28, QSFP+, SFP28 and SFP+ transceivers are also available to support a range of fiber interface needs.
Extreme Fabric Connect:
The VSP 7400 Series natively supports the Extreme Fabric Connect technology. Based on an extended implementation of Shortest Path Bridging (SPB) standards of IEEE 802.1aq and IETF RFC 6329, Fabric Connect offers the ability to create a simplified virtualized network that simplifies network provisioning and reduces the strain on network and IT personnel. Benefit s include:
- Eliminates need to configure network-wide VLANs
- Replaces legacy protocols with a single unified protocol
- Removes the risk of network loops
- Delivers an edge-only provisioning model that seamlessly integrates with orchestration and automation
- Supports both L2 and L3 virtualization, including IP multicast routing
Leveraging Fabric Connect delivers fundamental change. Rather than the network appearing as a mass of individual devices, it becomes a single cloud, so that engineers only need to touch the unique device that is providing service directly to the end-point. Fabric Connect instantly propagates all the end-points service attributes to every other node within the fabric.
Specific Fabric Connect features supported on the VSP 7400 Series include: L2 Virtual Service Networks (VSNs), Layer 3 Virtual Service Networks, Inter-VSN Routing, IPv4/ IPv6 IP Shortcuts, IP Multicast over Fabric Connect, Fabric Extend and Fabric Attach Server.
Advanced Layer 3 Services:
The VSP 7400 Series also supports advanced Layer 3 services that enable it to satisfy conventional IP routing deployments, in addition to its fabric-based services. Layer 3 services include IPv4 and IPv6 dynamic routing, as well as IP multicast services. Specific IP routing technologies supported include RIPv1/ 2, RIPng, OSPFv2/ v3, BGP/ BGP+ and VRF. Multicast services include PIM-SM/ SSM, IGMP v1/ v2/ v3, as well as Fabric Connect to PIM gateway. The VSP 7400 also supports Distributed Virtual Routing (DvR) and VXLAN Gateway services.
Specifications
UNSPSC Code
43222612
Weight
36.27lb
Height
13.39in
Width
24.41in
Length
36.1in
Brand
Own Brand
Category
Switches & Bridges
Compatible Rack Unit
1U
Depth
20.9"
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
QSFP28
Form Factor
Rack-mountable
Height
1.7"
Layer Supported
3
Manageable
Yes
Media Type Supported
Optical Fiber
Modular
Yes
Network Technology
1000Base-X
Number of Total Expansion Slots
56
Port/Expansion Slot Details
48 x 25 Gigabit Ethernet Expansion Slot
Power Source
Power supply
Product Series
7400
Product Type
Ethernet Switch
Redundant Power Supply Supported
Yes
Uplink Port
Yes
Width
17.3"
