B+B SmartWorx

B+B SmartWorx Vlinx Ethernet Serial Server - Twisted Pair - 6 x Network (RJ-45) x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Panel-mountable

Category Terminal & Device Servers
B+B SmartWorx Vlinx Ethernet Serial Server - Twisted Pair - 6 x Network (RJ-45) x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Panel-mountable
B+B SmartWorx

B+B SmartWorx Vlinx Ethernet Serial Server - Twisted Pair - 6 x Network (RJ-45) x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Panel-mountable

Out of Stock
Item Code: 4083190
Category Terminal & Device Servers
Manufacturer Advantech Co., Ltd

Description

Ethernet Enable Any Serial Device Now you can Ethernet enable any serial device-even your legacy digital current loops. Use B&B's Vlinx Serial Server technology to put your serial ports to work for you. Imagine the ability to communicate with every piece of equipment from any networked PC. Eliminate site visits just to make a minor configuration changes. Reduce service calls and increase productivity by knowing what your equipment is doing before you get a trouble-report. Spend more time doing the work you are paid to do instead of chasing down nuisance problems in remotely located equipment.

Do you have equipment with RS-232/422/485 or current loop interfaces that you have left unconnected? Many new and existing installations have equipment with unused ports for programming, monitoring or diagnostics. With B&B's Vlinx Serial Servers, you can put all those ports to work for you.

Simply connect the Vlinx server to the equipment's serial port, and connect the Vlinx Ethernet port to your LAN. Your equipment is now online. It will appear as a local COM port on any networked PC running our Virtual Serial Port software. No software customization required, just run the appropriate software for your equipment.

Industry Applications

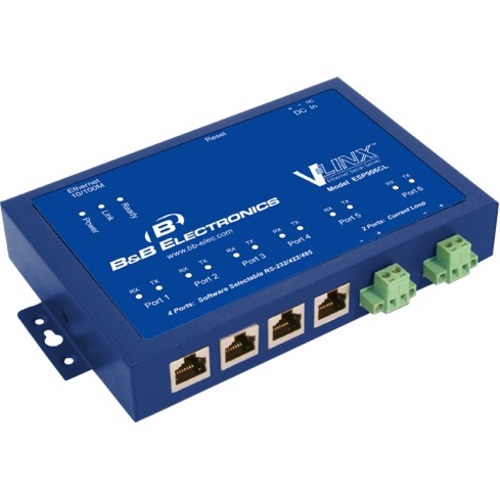

B&B Electronics' new Model ESP906CL integrates the benefits of Ethernet communications with existing serial devices by offering four configurable RS-232/422/485 serial ports and two digital current loop ports. The Ethernet connection will auto select 10BaseT or 100BaseTX. The ESP906CL provides a Windows host control over serial devices located virtually anywhere on a TCP/IP or UDP/IP Ethernet connection. It even gives authorized users control over the connected serial device or the ESP906CL Menu from anywhere outside the LAN.

Specifications

UNSPSC Code

43222625

Weight

2.7lb

Height

3.5in

Width

8.5in

Length

9.2in

Brand

B+B SmartWorx

Brand Name

B+B SmartWorx

Category

Terminal & Device Servers

Country of Origin

Taiwan

Depth

4.5"

Environmental Certification

RoHS

Environmentally Friendly

Yes

Ethernet Technology

Fast Ethernet

Form Factor

Panel-mountable

Height

1.1"

Manufacturer

Advantech Co., Ltd

Media Type Supported

Twisted Pair

Network (RJ-45)

Yes

Network Standard

10/100Base-TX

Number of Network (RJ-45) Ports

6

Packaged Quantity

1

Product Family

Vlinx

Product Line

Vlinx

Product Type

Device Server

Serial Port

Yes

Width

7.3"

Starting from
$1,118.93 / EA
/
LIST PRICE $1,118.93
%
